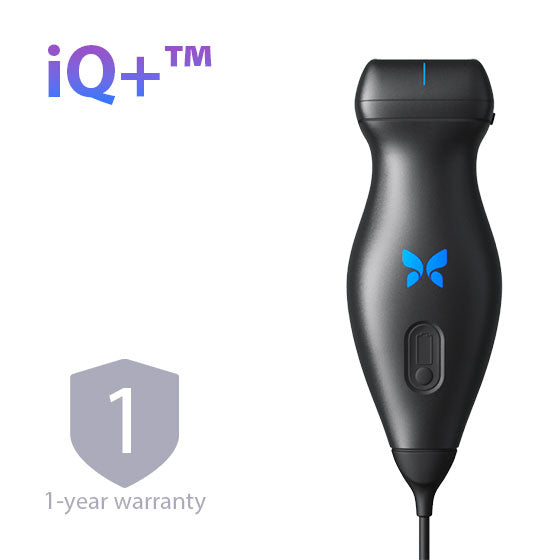

Black ultrasound device with butterfly logo, 1-year warranty icon and iQ+ branding on a white background
  • Black ultrasound device with butterfly logo, 1-year warranty icon and iQ+ branding on a white background
  • Butterfly iQ+™ Point-of-Care Ultrasound Probe w/Software Membership
Butterfly iQ+™ Point-of-Care Ultrasound Probe w/Software Membership

Butterfly iQ+™ Point-of-Care Ultrasound Probe w/Software Membership

Butterfly Network Inc.
$6,170.00
$4,030 for POCUS + Choose Your Software Membership Plan:

  • Military-grade tested to withstand a 4-foot drop.

  • Water and dust resistant.*

  • Replaceable stomp- and compression-tested cable.

* IP67 up to the line on the back of the probe. ‘MIL-STD-810G.

Butterfly iQ+ is powered by the second-generation, Ultrasound-on-Chip™, which allows it to push the limits of what’s possible.

Disclaimer: Butterfly IQ+™ is for prescription use only. Butterfly iQ+™ is a portable ultrasound system designed for external ultrasound imaging. Read the User Manual for warnings, precautions and/or contraindications.

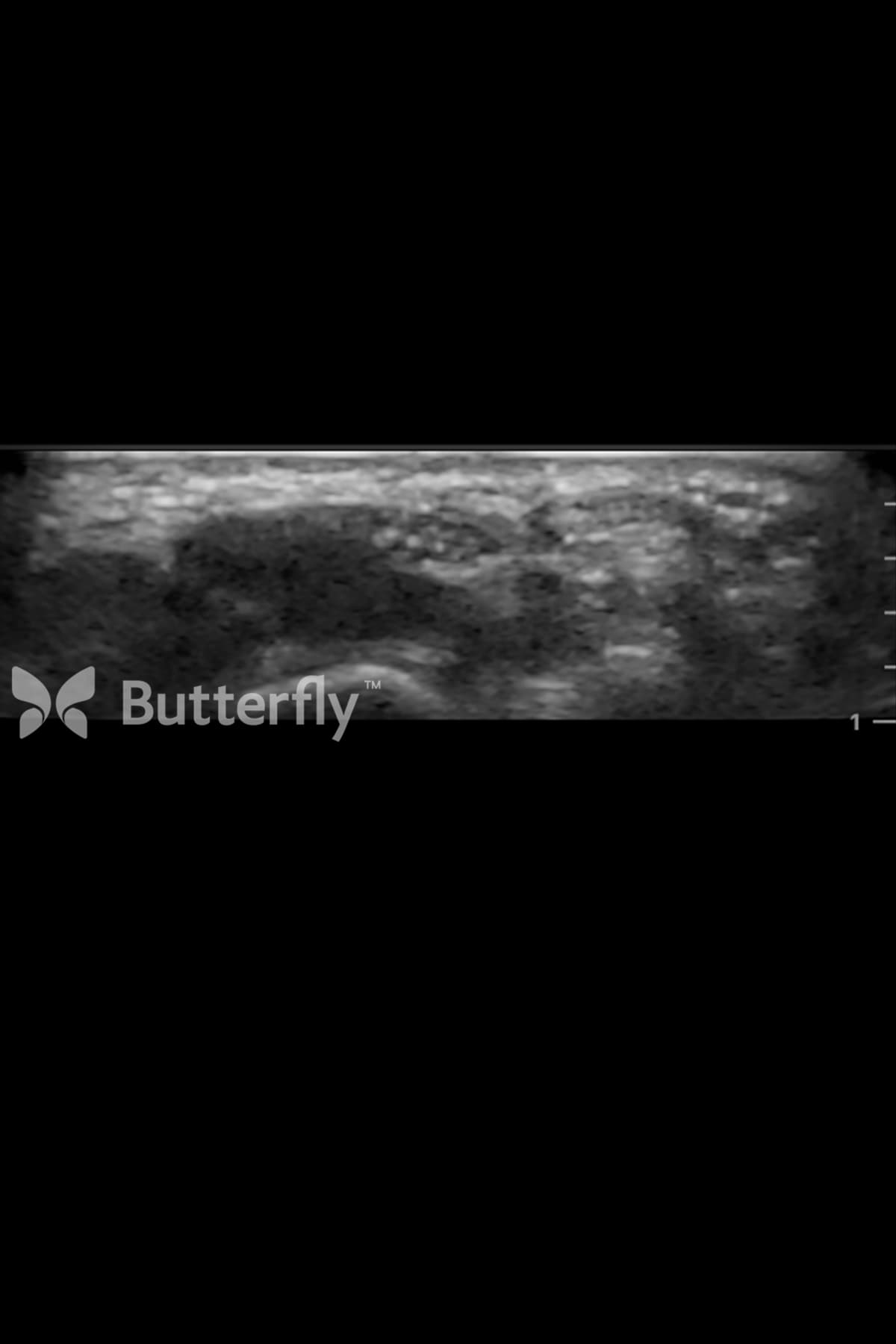

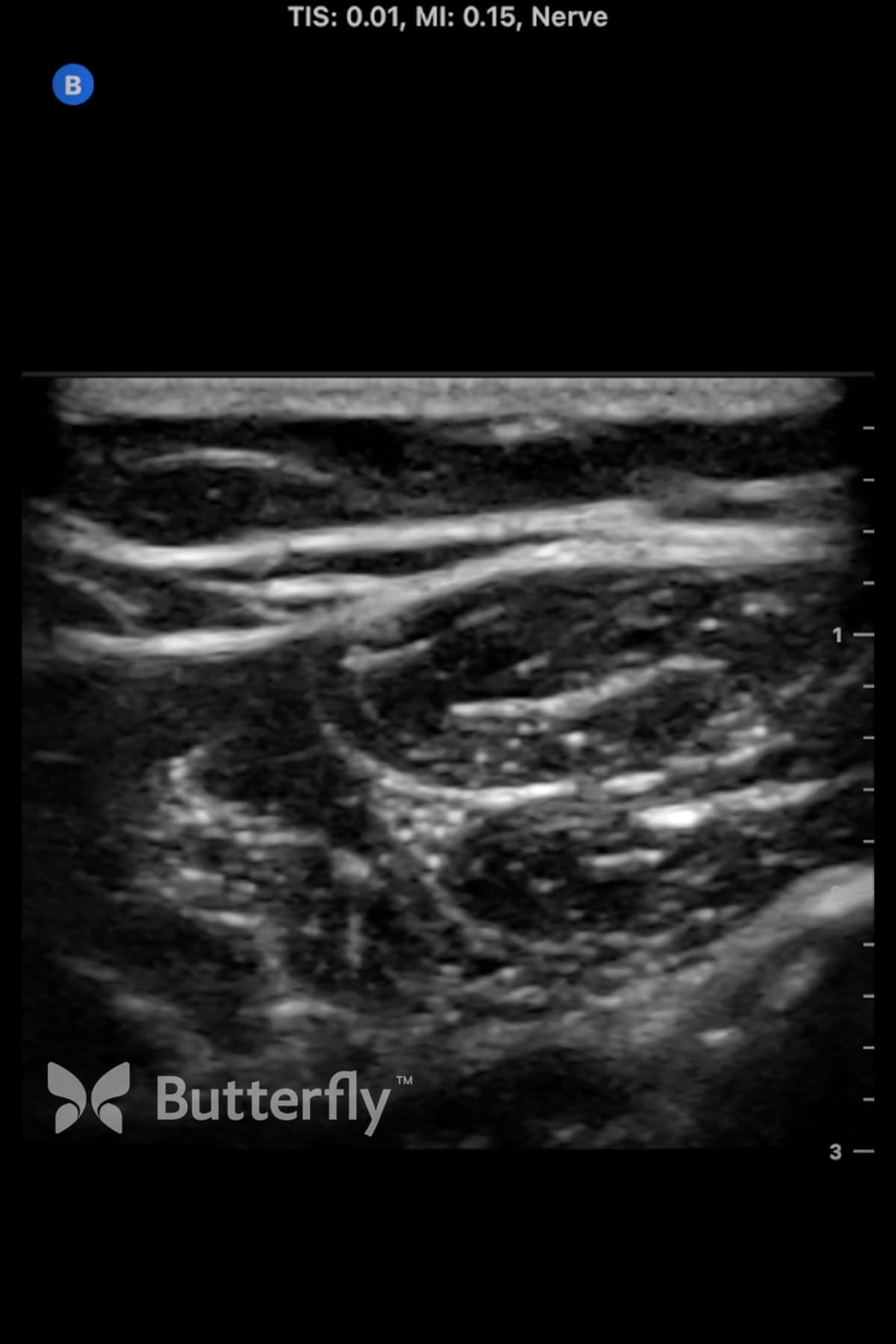

Outstanding Image Quality

High-quality imaging across cardiac, lung, abdominal, vascular, and musculoskeletal exams—giving you clarity wherever you scan.

 View Clinical Library

Fast Frame Rates

Patented on-chip digital micro-beamforming enabling fast frame rates and pulse repetition frequency.

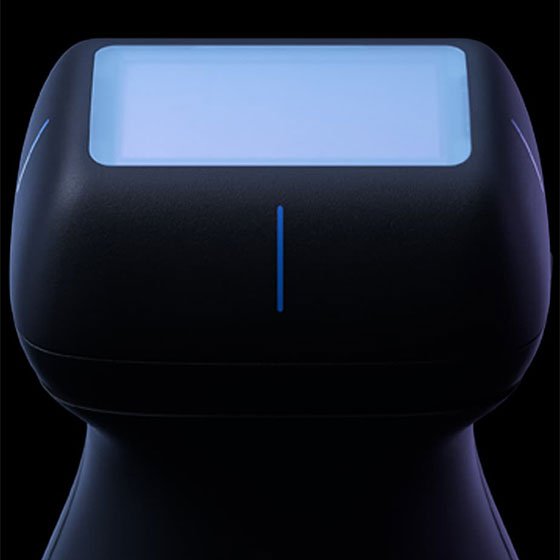

black ultrasound device with blue lights on the black background

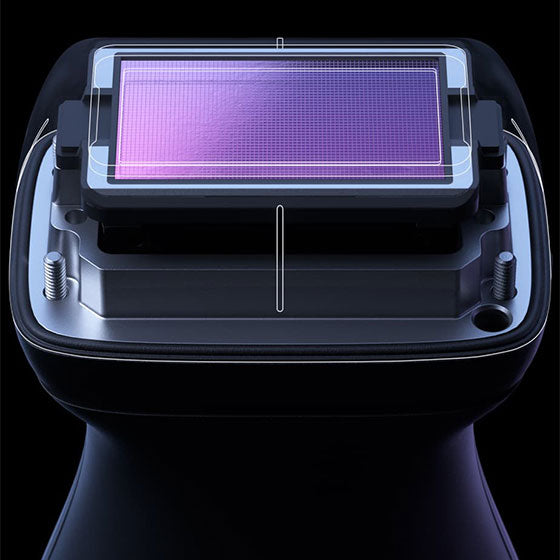

Ultrasound device showing purple inside structure on a black background

Optimized Beamforming

1.75D array beamforming for 85% reduction in elevation beam width.

Cutting Edge Efficiency

Innovative low-noise, low-power consumption semiconductor process and optimized electronics with power efficient FPGA.

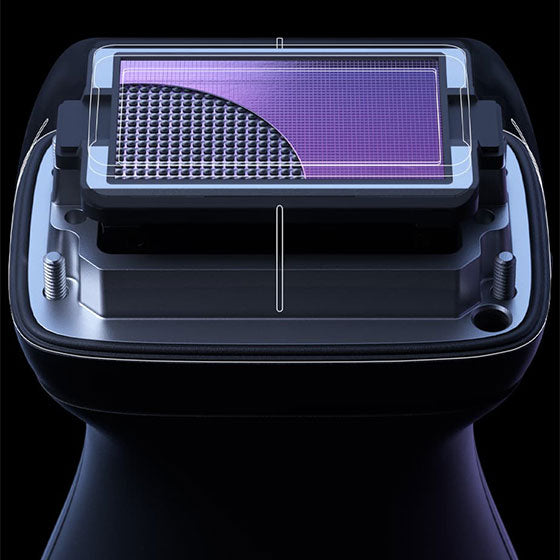

Close-up of a black ultrasound device with a grid pattern on a dark background

What's in the Box:

iQ plus portable ultrasound device probe

Butterfly iQ+™

iQ+ lightning charger

iQ+ Charger

Lightning cable

Lightning® Cable

USB-C 2.0 Cable

USB-C 2.0 Cable


Frequently Asked Questions
About Software Membership Plans

Advanced Technology plan allows you to go beyond the basics with advanced imaging tools to elevate your diagnostic and procedural capabilities. Each plan can have 1 probe and 1 user seat.
What's included in the Advanced Technology plan

Imaging modes

  • 20+ clinical applications
  • B-Mode
  • M-Mode
  • Colour Doppler
  • OB Calculations
  • Power Doppler
  • Pulsed-Wave Doppler: A quantitative mode that graphically displays blood flow velocity measurements over time.

Artificial intelligence

  • Auto Bladder Volume Calculation: Delivers automated bladder volume calculations, with 3D visualizations, in seconds. Simplifies urinary retention assessment for less-experienced scanners.
  • Auto B-Line Counter: Produces a B-line count from just a six-second ultrasound clip, simplifying dyspnea assessment.

Advanced imaging tools

  • iQ Slice™: In a moment when precision is essential, hold the probe in one place while it captures multiple images across a wide
    angle. iQ3 only.
  • iQ Fan™: This lung-dedicated tool allows you to benefit from real-time back-and-forth virtual tilting, making it easier to detect various lung conditions. iQ3 only.
  • Needle: Out-of-Plane™: A preset designed for earlier needle tip visualization, within 1 mm from the entry point, enabling more successful procedures. iQ3 only.
  • Subxiphoid Tilt™: This feature angles the beam for easier image capture, reducing the need for a shallow angle and possible pressure for visualization. iQ3 only.
  • Velocity-Time Integral (VTI). iQ3 only.
  • Cardiac Output. iQ3 only.
  • Biplane Imaging™: Enable visualization of the long and short axes simultaneously in the MSK, Nerve, Soft Tissue, and Vascular Access presets.
  • Needle Viz™: Visually highlight needles in-plane for added precision during challenging injections and line-placements.
  • Fetal Heart Sounds: Allows the user and patient to hear the sound of the fetus's heart and simultaneously displays the pulsed wave spectrum.
  • Umbilical Artery Doppler
  • Labeling Protocols
  • Manual Gastric Volume Calculation

Storage and collaboration

  • Unlimited secure Cloud storage
  • Share studies via de-identified links: Text or email de-identified studies directly to colleagues for a consult, or to patients to keep them informed.
  • TeleGuidance™: Enables a remote practitioner to connect with a peer at the bedside.
  • Real-time commenting & tagging
  • Study downloads

Education

  • Hundreds of education videos
  • Butterfly Academy™ courses
  • ScanLab™: Access to a new educational app that guides learners through ultrasound protocols and provides in-the-moment Al feedback to improve image acquisition skills.

Workflow

  • Order-based workflow
Annual vs. 5-Year Membership

Annual membership subscription is a 365-day subscription with optional renewal. 5-Year payment is a one-time payment for the 5-year subscription guarantee.
Is my device compatible?

Butterfly probes work with a range of supported iOS and Android devices, including many recent iPhone, iPad, and select Samsung and Google Pixel models. Compatibility depends on factors like your device model, operating system, and connector type (Lightning or USB-C).

Because supported devices and requirements can vary—including specific model versions and regional limitations—we recommend checking the full compatibility list before getting started.

View the complete list of supported devices

Easy Start with Butterfly POCUS

Explore Butterfly Network Inc.’s video library with tutorials and guides designed to help you maximize the performance of your portable ultrasound devices.

 View More Butterfly Videos
